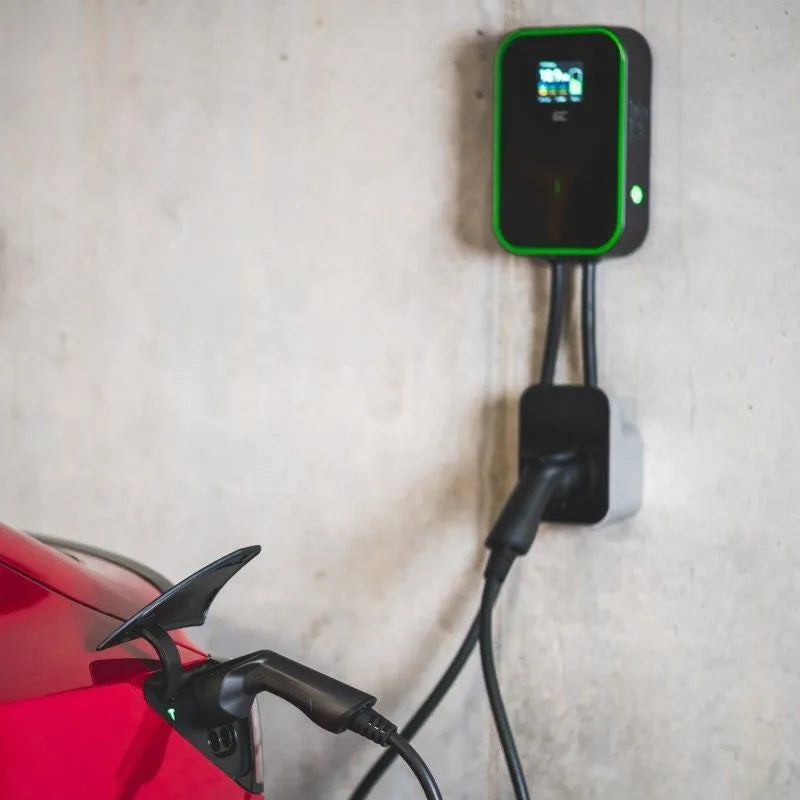

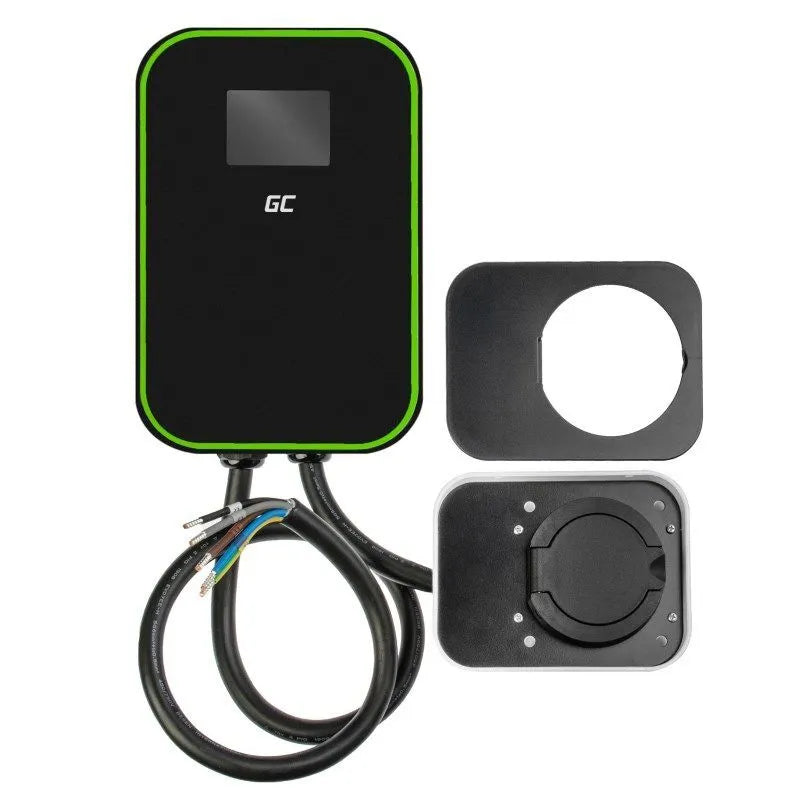

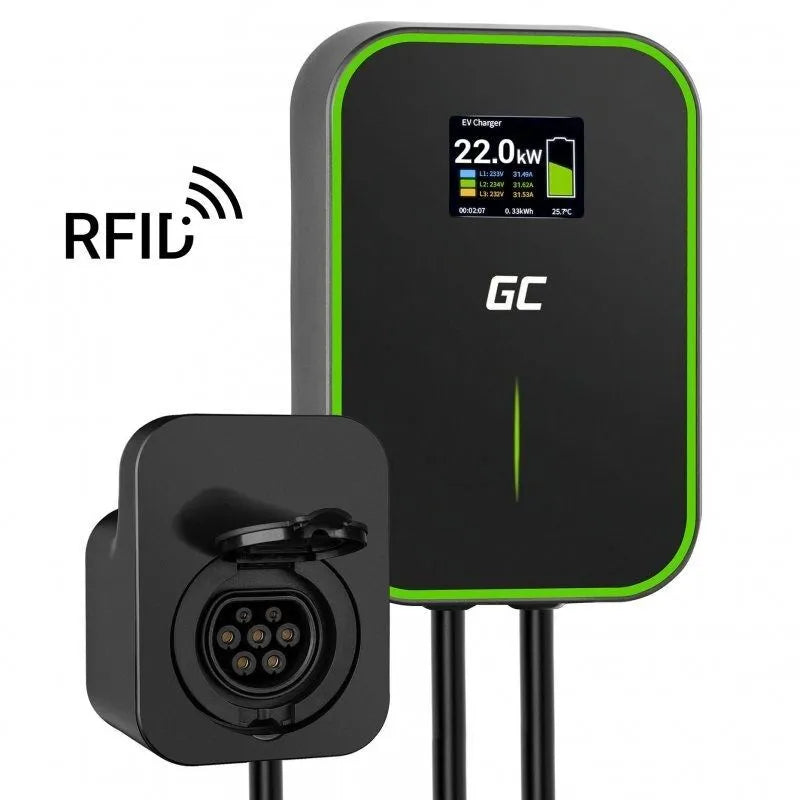

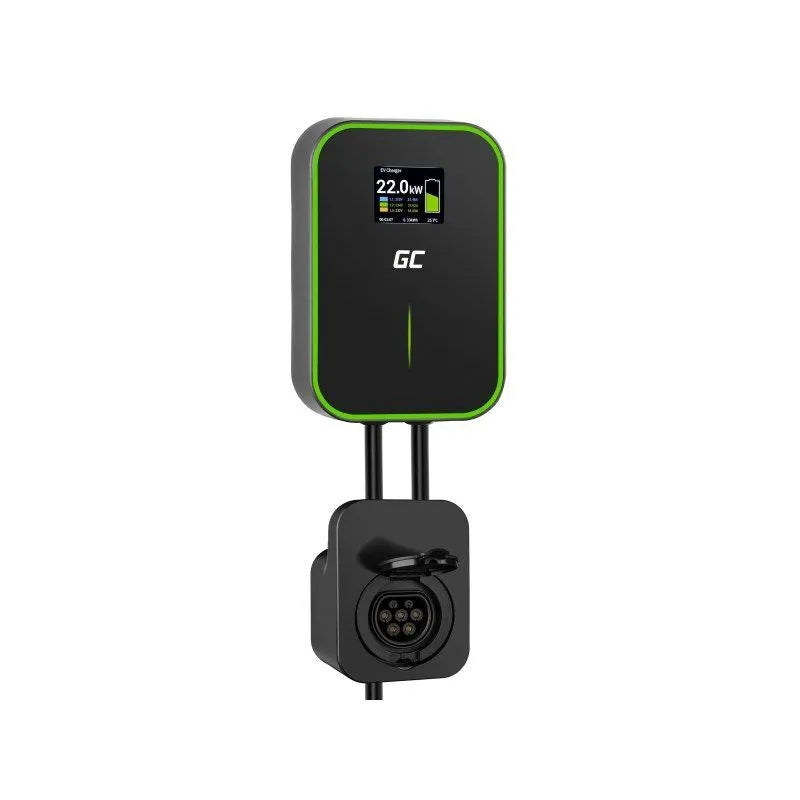

Green Cell Wallbox EV PowerBox 22kW charger with socket and RFID

Description

  • Characteristics
    • Product weight: 4.62 kg
    • Product height: 295 mm
    • Minimum operating temperature: -40 °C
    • Product width: 195 mm
    • Operating temperature (max): 50 °C
    • Mounting method: Wall mount
    • Housing material: Plastic
    • Power cable: No
    • Communication Protocol: No
    • RFID: Yes

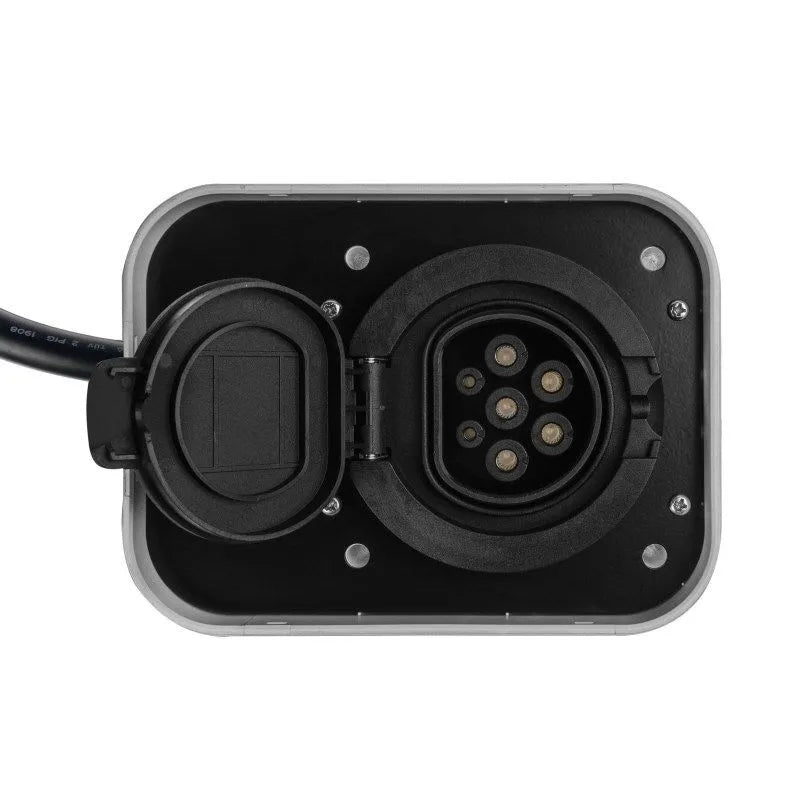

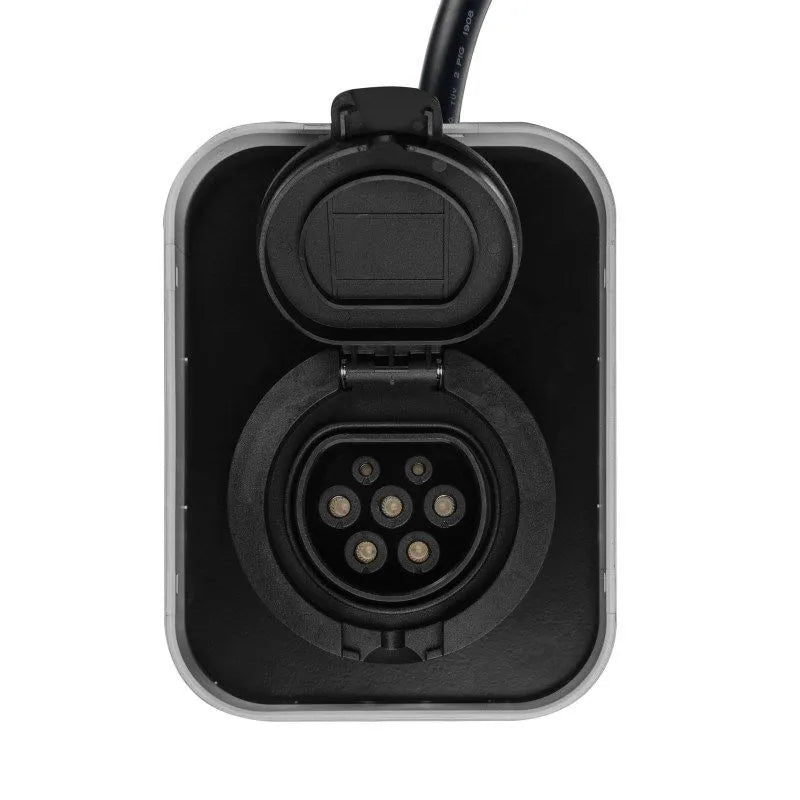

    • Charging interface: IEC62196-2, type 2 plug
    • Connectivity: None
    • Product color: Black
  • Power
    • Maximum power: 22000 W
    • Power regulation: No
    • Current: 32 A
    • AC input frequency: 50 Hz
    • Input voltage: 380 V
  • Security
    • IP protection class: IP66
    • Overheating protection: Yes
    • Short circuit protection: Yes
    • Overcurrent protection: Yes
    • Over voltage protection: Yes
    • Warning indicators: Yes
    • Integrated 30 mA Type A and 6 mA DC leakage protection: Yes
    • Input undervoltage protection: Yes
  • Packaging data
    • Number of RFID cards in the set: 5
  • Safety warning
    • Warnings
      • Before use, ensure that the appliance is properly installed by a qualified electrician.
      • Do not use the device in damp or wet environments to avoid the risk of electric shock.
      • When performing maintenance or servicing, disconnect the device from the power source.
    • Hazard pictogram(s)
      • GHS05: Substances corrosive to metals
      • GHS04: Gases under pressure
  • Additional design features
    • Built-in display: Yes
    • Dynamic Power Management (DLM): No
    • Built-in counter: No
    • Updates (OTA) : No

Product form

Characteristics Product weight: 4.62 kg Product height: 295 mm Minimum operating temperature: -40 °C Product width: 195 mm Operating temperature... Read more

Barcode: 5907813968211

Delivery within 2-5 days

€689,48 Incl. VAT
