Description
GPS training computer with many functions

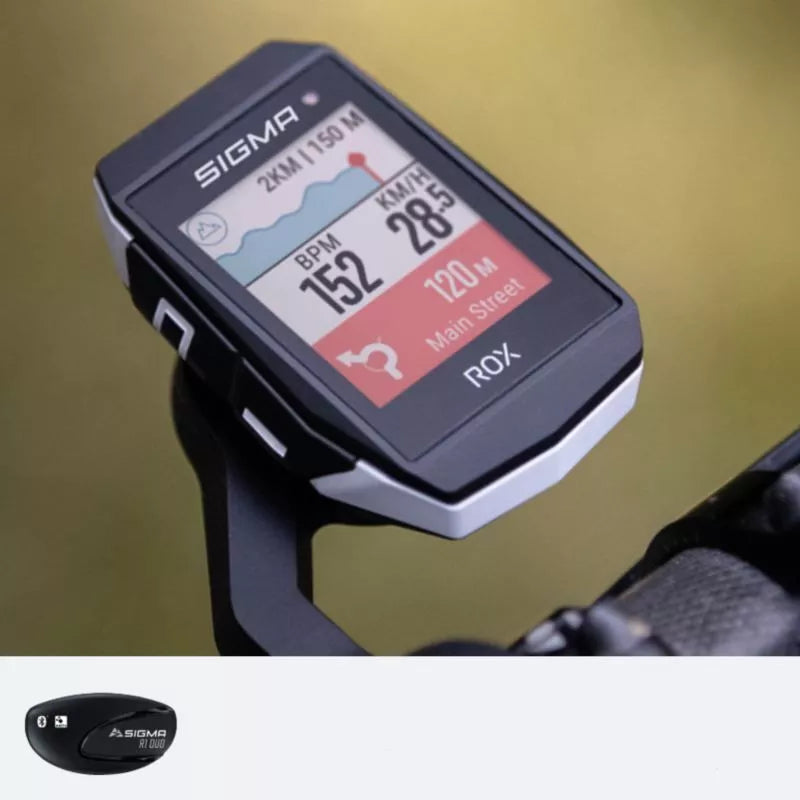

Whether you're breaking records, want to stay fit, or simply enjoy touring with family and friends, the ROX 11.1 EVO bike computer is the perfect companion for outdoor and indoor training. In addition to its numerous training functions, the GPS bike computer offers navigation, structured workouts, and connectivity to external sensors. So you can fully concentrate on your performance, while the ROX 11.1 EVO takes care of the rest. Thanks to the LIVE function, you can track and analyze your data at any time using the SIGMA RIDE app.
TOP-SHELF FEATURES
Over 150 bike computer functions provide essential support during training or outings with friends. The ROX 11.1 EVO delivers all data reliably and in real time. Besides compatibility with e-bikes and external sensors, the range of functions includes speed and distance measurement via GPS, barometric altitude measurement, and route or komoot navigation. In the event of an accident, the built-in Crash Alert notifies your pre-defined emergency contacts. Smart Notifications notify you of incoming calls and messages while riding. Create workouts in your chosen service and import them as FIT files to the ROX 11.1 EVO.
YOUR PERSONAL PROFILE
Your freedom is limitless. The ROX 11.1 EVO comes pre-installed with four of 20 different sport profiles. Create your own sport profile and use the ROX 11.1 on different bikes. Six different training views, each with one to six data fields, can be individually configured and color-coded using the SIGMA RIDE app. This way, you always have your goals under control. Additional screens for the Workout, Track, and Navigation functions are also available via the komoot app. You can also launch an additional data page dedicated to the connected FE-C trainer. Connect the ROX computer to your smartphone and track your performance in real time on the Live Screen in the SIGMA RIDE app.
YOUR SPORTS PROFILES
Up to 20 different sport profiles can be installed and run on the ROX 11.1 EVO, such as road bike or mountain bike.
INDIVIDUALIZATION
Design your personal cockpit, individually choose how many and what values should be shown on your display.
COLOR DATA FIELDS
Individual data fields can be highlighted in different colors for better readability.
EXTENSIVE DATA SET
How long, how fast, how high? The ROX 11.1 EVO records up to 100 hours of ride time, so you always have your training data under control! Instantly analyze your performance on the ROX 11.1 EVO or on the Live Screen of the SIGMA RIDE app. After your workout, you can, of course, also use the SIGMA DATA CENTER on your PC or Mac. Here, you can analyze your data even more precisely and plan routes. Compare training values, track your progress, and monitor your individual training with the Workout function. Use the various sharing options in the SIGMA RIDE app to share your successes with friends and teammates.
SPORTY LOOK
The ROX 11.1 EVO impresses with its compact and modern design. At just 55 grams, it's incredibly lightweight and fits perfectly into your cockpit. You can keep an eye on everything without the bike computer compromising your performance.
Two colors to choose from
The ROX 11.1 EVO is available in two colors: discreet gray or slightly more striking white. The display is anti-reflective for optimal readability even in the woods.
READY TO WORK IN A TWIST!
The ROX 11.1 EVO scores points with its simple and intuitive operation. Five easy-to-reach large buttons make the bike computer incredibly easy to use, even with gloves on. You'll quickly navigate the simple menu structure and get exactly where you need to be in just a few steps. After turning it on, the device is in training mode, so you can get going immediately. A separate menu button allows quick access to settings and functions like Workout and Track navigation. The ROX 11.1 EVO will notify you with an audible alert when, for example, you receive a message, a voice call, or you need to turn.
ROUTE NAVIGATION
Plan a route together with your friends! Create a route in the SIGMA DATA CENTER or with your chosen third-party provider and load it onto the ROX 11.1 EVO. Route navigation will point you in the right direction. You can also add POIs, points of interest, or coffee breaks to your route navigation. If you stray from the route, the ROX will send you a message and show you the shortest route back. The route view automatically zooms in with your speed to ensure you don't miss any turns. However, if you leave the route, the view automatically zooms out so you always have the route in view and can quickly find your way back.
KOMOOT NAVIGATION
Connect your ROX 11.1 EVO to the komoot app, start a route in the app, and put your smartphone in your pocket. Komoot navigation instructions will appear on your ROX 11.1 EVO.
TREND – INDOOR CYCLING
Fancy a stationary workout? Pair the ROX 11.1 EVO with a smart trainer or roller trainer. This way, you can utilize the training computer's numerous functions even during stationary training.
EASY PAIRING
Sensors for measuring speed, cadence, and heart rate can be connected very easily and reliably via BLE and ANT+. The ROX 11.1 EVO also includes new magnetless speed and cadence sensors (also available as accessories). The ROX 11.1 EVO can also be paired with electronic derailleurs or a power meter.
Speed measurement
SRAM eTap compatible
Cadence measurement
Shimano DI2 compatible
Heart rate measurement
Trainer (ANT+)
Measuring power with a power meter
E-BIKE READY? SURE!
The ROX 11.1 EVO is e-bike compatible and pairs incredibly easily with a wide range of e-bike models. Your GPS bike computer communicates with your compatible e-bike system and displays specific information such as range, battery status, and assist level.
LIVE IN THE MOMENT!
Record your data using your bike computer and analyze it instantly on the LIVE Screen in the SIGMA RIDE app. You can easily change individual training views while riding. You can also select other pre-programmed views.
SAFETY FIRST
The ROX 11.1 EVO automatically recognizes a fall and gives you 30 seconds to confirm that everything is okay. If not, the SIGMA RIDE app will automatically notify your emergency contacts via text message and share your GPS data. You can also save important data on your device, such as your blood type, name, and medication. In the event of an accident, this information will be displayed on the display.
STAY IN TOUCH!
Smart notifications connect your smartphone to the ROX 11.1 EVO even while riding. Notifications of incoming calls, messages, and emails automatically appear on the display. You can even read short messages on the ROX 11.1 EVO. If you need peace and quiet while riding, you can turn off sounds or smart notifications.
PERFECT FASTENING THANKS TO
SHORT BUTLER HANDLE
Specially developed for the ROX 11.1 EVO, the Short Butler mount mounts the ROX 11.1 EVO closer and more streamlined to the handlebar than other GPS mounts. A new record! No problem! The Short Butler mount can be mounted to handlebars with a diameter of 25.4 and 31.8 mm in just a few simple steps. Curved handlebars? Align the ROX 11.1 EVO with the 3D Rubber Pads straight in front of the handlebar.
FLEXIBLE INSTALLATION
Prefer minimalism? Mount the ROX 11.1 EVO on a GPS mount. This mount attaches to the handlebar or stem with cable ties, while the ROX 11.1 EVO is secured with a click-lock screw.
Dimensions (W x L x H) 46.8 x 66.1 x 20.8 mm
Compatible with GPS Mount Overclamp Butler Short Butler mounts
Weight 55 g
IP67 waterproof
Battery 1000 mAh (Li Ion), 3.7 V
Touchscreen -
Display size 1.77"
Resolution (pixels) 128x160
Color display / Number of colors 262 k Colors
Transmissive display technology
Screen backlight
Standard battery life 18 Hours
ANT+ BLE connectivity
Smart notifications
Sensor technology Cadence Electronic shifting Heart rate Power meter Smart Trainer (FE-C)
E-Bike Ready
Navigation
Map navigation -
Route navigation
Route directions
Number of routes on the device bis zu 36
Return to starting point Same track back
Sensors
GPS
GLONASS
GALILEO
Barometric altimeter
Ambient light intensity sensor
Acceleration sensor
Training
4 pre-installed sports profiles
Sports profiles with the possibility of individual settings Up to 20
Training pages with the possibility of individual settings Up to 6
Possibility to individually set the number of training values per page Up to 6
Training View Templates 8
Colors to highlight the training values 8
Trainings
Number of workouts on the device: 36
Strava Live Segments -
Accident notification
Drinks Food Individual Alarms
Automatic pause
Lap function Automatic (time / distance) Manual
Target heart rate zone training Cadence Heart rate Power Speed
Data analysis
SIGMA DATA CENTER
SIGMA RIDE App
Memory Up to 100 h training
.fit data format
Basic functions
Speed
Average speed
Maximum speed
Distance
Training time (net)
Training duration (net)
Speed distribution
SIGMA Performance Index
Calories
Date
Clock
Height measurement
Current altitude
Driveway (in %)
Vertical speed
Elevation profile
Uphill elevation gain
Maximum height
Average vertical speed
Maximum vertical speed
Average upward slope
Maximum upward slope
Downhill elevation
Average downward vertical speed
Maximum vertical speed down
Average downward slope
Maximum downward slope
Number of ramps
Number of rides
Minimum height
Term of office
Term of office
Average term of office
Maximum term of office
Term of office distribution
Heart rate functions
Current heart rate
Average heart rate
Maximum heart rate
Minimum heart rate
maximum heart rate %
Average % of maximum heart rate
Target zone
Intensity zones
Heart rate distribution
Power functions
Balance
Balance 10 sec – average
Balance 3 sec – average
Balance 30 sec – average
Balance average
Smooth pedaling
Current power
Power – %FTP
Average power
Power 3 sec – average
Power 10 sec – average
Power 30 sec – average
Power – Intensity Factor
Power - max
Power in KJ
Normalized power
Training Stress Score
Power in watts/kg
Power Zones
Torque efficiency (--% / --%)
Power distribution
E-bike features
Reception
E-bike battery
Power (watts)
Human Power vs. Motor Power
Support level
Gear indicator
Light
Total e-bike distance
Total e-bike time
Trainer functions
Trainer resistance
Trainer mode
Trainer target power
Automatic lap functions (time or distance based)
Number - AutoLap
Lap time - AutoLap
Distance - AutoLap
Average speed - AutoLap
Maximum speed - AutoLap
Calories - AutoLap
Medium Height - AutoLap
Maximum height - AutoLap
Downhill elevation - AutoLap
Elevation Up - AutoLap
Average elevation gain uphill - AutoLap
Average elevation gain downhill - AutoLap
Average vertical speed up - AutoLap
Average vertical speed down - AutoLap
Medium Balance - AutoLap
Medium power - AutoLap
Maximum power - AutoLap
Normalized power - AutoLap
Average cadence - AutoLap
Maximum cadence - AutoLap
Average heart rate - AutoLap
Maximum Heart Rate - AutoLap
Pedaling time - AutoLap
Pedaling indicator - AutoLap
Auto-Lap List
Manual lap functions
Number - Lap
Lap time - Lap
Distance - Lap
Average Speed - Lap
Maximum Speed - Lap
Calories - Lap
Average height - Lap
Maximum Height - Lap
Uphill Gain - Lap
Downhill elevation gain - Lap
Average elevation gain uphill - Lap
Average elevation gain downhill - Lap
Average vertical speed up - Lap
Average Downward Vertical Speed - Lap
Medium Balance - Lap
Average Power - Lap
Maximum Power - Lap
Normalized power - Lap
Average Term - Lap
Maximum Term - Lap
Average Heart Rate - Lap
Maximum Heart Rate - Lap
Pedaling time - Lap
Pedaling indicator - Lap
Lap List - Lap
Navigation functions
Time to destination
Arrival time
Distance to destination
Direction of travel
Route navigation
Route directions
Distance to next waypoint
Electronic switching
Battery status
Front gear ratio (sprocket)
Gear ratio
Rear gear ratio
Di2 gear mode
General functions
Current temperature
Minimum temperature
Maximum temperature
GPS accuracy
Device battery charge status
Pressure
Weather trend
Compass
